TTGO LoRa32 V2.1_1.6 version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI wireless Module ESP-32 SMA

Created: 08 April 2021 | Written by Super User | Print | Email | Hits: 11300

View Comments

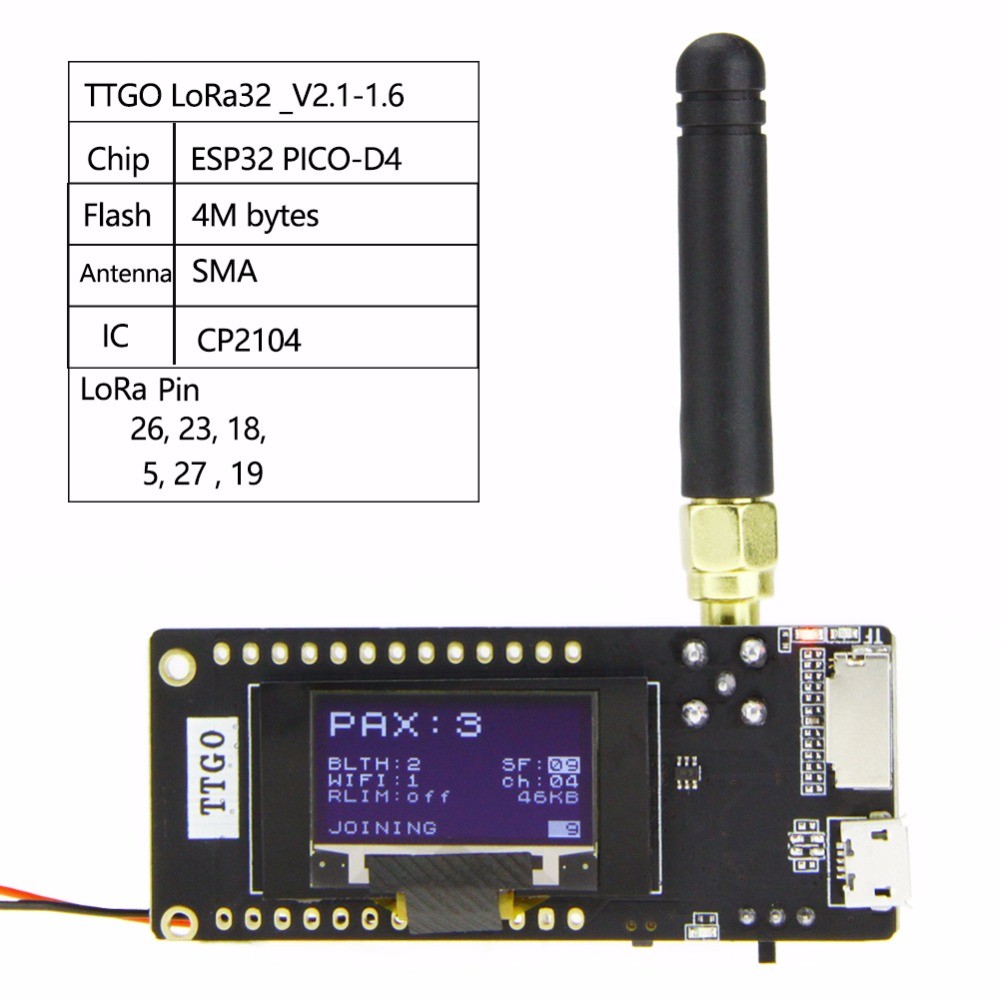

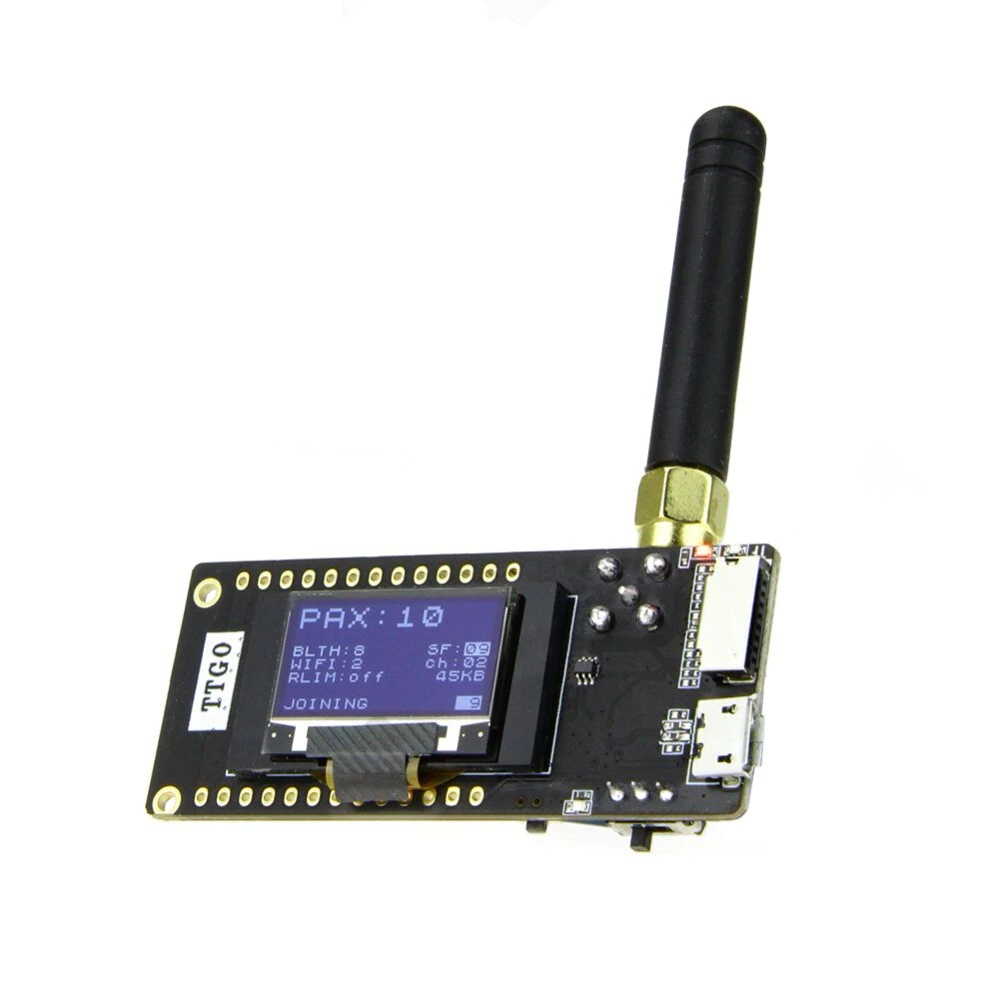

TTGO LoRa32 V2.1_1.6 version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI wireless Module ESP-32
2 x 433MHz / 2 x 868Mhz

TTGO LoRa32 V2.1.6 (aka T3 V1.6, aka LoRa32 V2.1 release 1.6): (my is T3 v1.6.1 20210104)

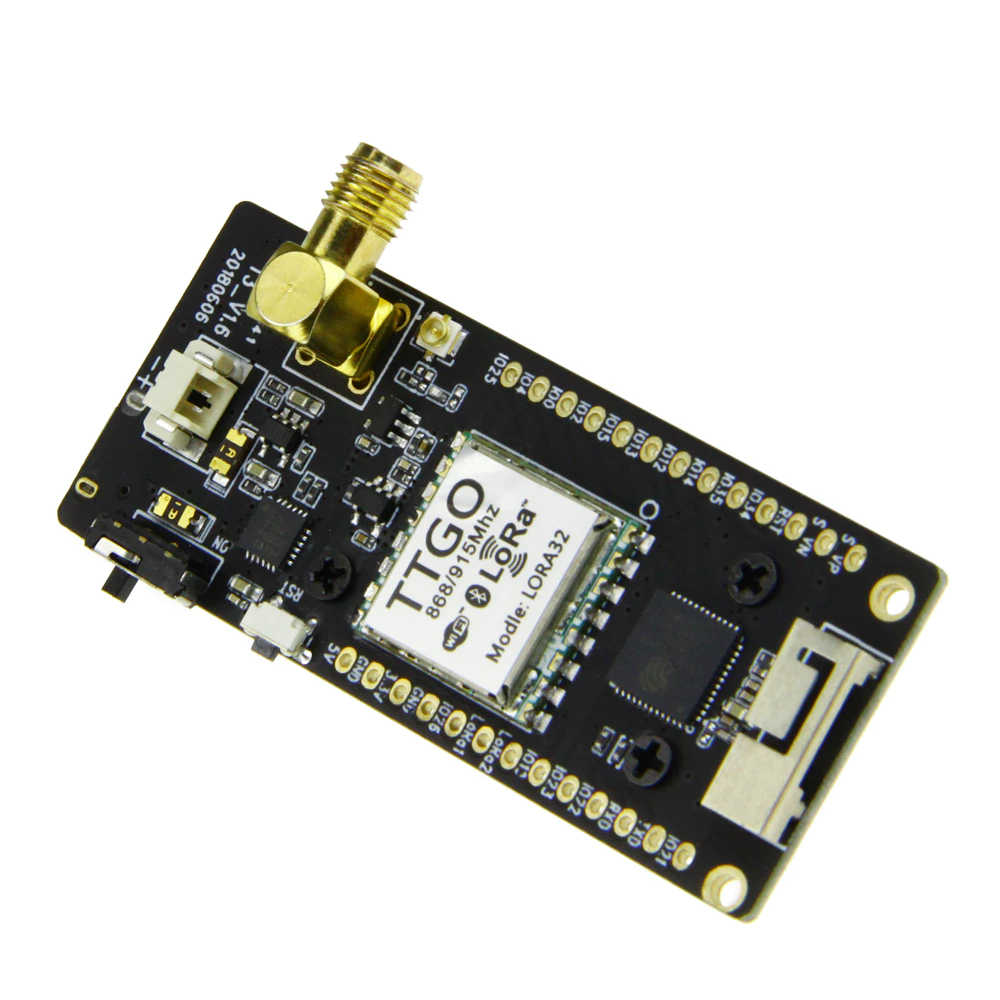

Is labeled T3 V1.6, 20180506 on the PCB.
Similar to V2.1.5 with changes and improvements:

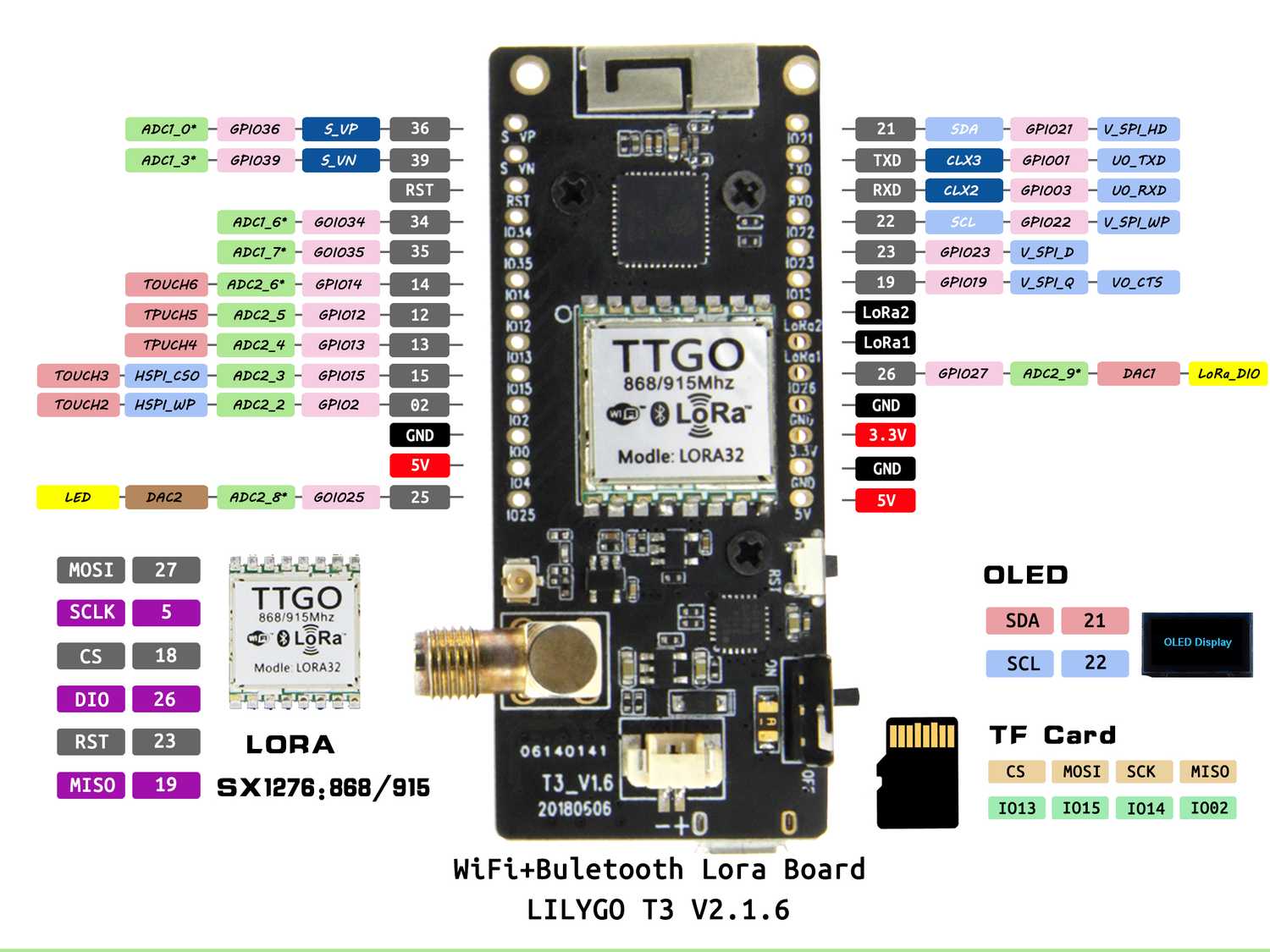

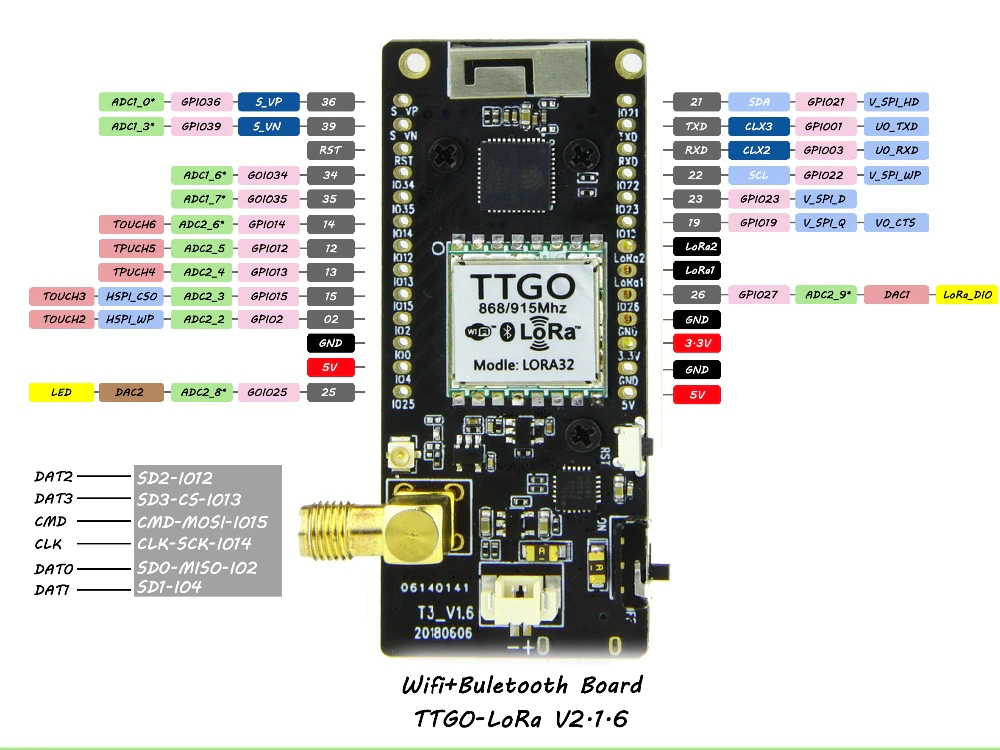

Changes in pins / GPIOs. Uses GPIO23 for LoRa RST. Uses GPIO25 for onboard LED. Uses GPIO35 as ADC for battery voltage measurement (uses 100k/100k divider).
